Incredibly speed in reinforcing design and preparing structural drawings.

 Compatibility with SAFE 8, SAFE 12, SAFE 14, SAFE 2016, SAFE 20.

 Compatibility of generated drawings with all versions of AutoCAD Software.

  Simple Procedure for importing structure from SAFE to FOUNDA MATE.

  User friendly and very simple graphical interfaces.

  Independent software without any dependency to other programs.

  Ability to support and provide details for the angular design strips.

  Ability to support and provide details for the poly-line broken design strips.

  Featuring intelligent algorithm of economic optimization of reinforcement bars based on shape of steel area diagram.

  Ability to reduce steel consumption by 20% using software economic optimization algorithms.

  Ability to define typical longitudinal rebar details for Top and Bottom location of Design Strips separately.

  Ability to define typical rebar details for Layers A, B and Other separately.

  Ability to define typical rebar details for each Design Strips separately by mouse click.

  Equipped with powerful and very quick internal drawing engine.

  Easy to edit drawings that generated by software.

  Ability of previewing all computed details with a very convenient way in the plans of  structure.

  You can define transverse section and dimension lines by mouse click on the desired locations.

  Automatically calculate splice length of rebar or use user defined multiplayer for calculate them.

  Auto labeling all rebars in structural drawings.

  Auto generate rebar list table include size, shape, length and weight of rebars in the structural drawings.

  Automatically read all defined geometry and section from SAFE model file and regenerate them.

  Ability to define new section or edit properties of section that automatically generated by software.

  All reinforcing design parameters can be configured in the software.

  Ability to change reinforcing design details in software before generating structural drawings.



Back to Top Menu



---



Download Drawings Sample Generated By FOUNDA MATE Foundation Slab Detailing Software

This file is content of Structural drawings that exported by FOUNDA MATE software in AutoCAD drawings file format. Drawing sample file include:     1. Dimension and Section Location Plan     2. Foundation Top Additional Reinforcing Details Plans     3. Foundation Bottom Additional Reinforcing Details Plans     4. Foundation Top Typical Reinforcing Details Plans     5. Foundation Bottom Typical Reinforcing Details Plans     6. Foundation Transverse Sections Details     7. Column Sections Details     8. Rebar Shape, Size and Weight Details Tables Drawing Time:       1 second File Format:        DWG (AutoCAD Drawings file format)       Download Drawing Sample.DWG     size: 0.28 MB     Download  PDF  Drawing Sample.PDF   size: 0.72 MB



Back to Top Menu

---

ۀ

How to Use the FOUNDA MATE Foundation Slab Detailing Software

The whole process of concrete reinforcement detail design and generating structural drawings by FOUNDA MATE will be carried out in just four simple following steps:

Back to Top Menu

---

To inform more about graphical user interfaces (GUI) and functionality of the software, screenshots from different parts of the software is given below :

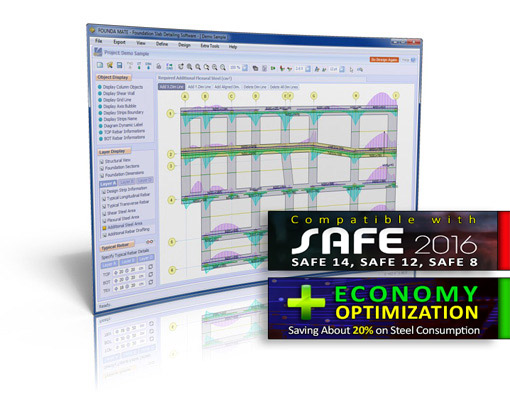

Screen shot of the main software window:

Drawing Sample of Foundation Dimension and Section Location Plan:

Drawing Sample of Foundation Additional Rebar Details Plan:

Drawing Sample of Foundation Typical Rebar Details Plan:



Drawing Sample of Foundation Sections and Rebar schedule lists:



You can view useful details by several layers in Layer Display panel:





   Foundation Sections: View and define new section location

   Foundation Dimensions: View and define new dimension lines

 X Strip Required Steel: View total steel area diagrams

  X Strip Additional Steel: View additional steel area diagrams and additional rebar extents

 X Strip Add. Rebar Draft: View additional rebars



Foundation Sections Manager Interface





Back to Top Menu

---

	Download FOUNDA MATE
	Foundation Slab Detailing Software

Please download FOUNDA MATE evaluation trial version by the following links and then install software on the desired computer. In this case software will be activated in the trial mode on your computer. In the trial mode, you can see the features and abilities of the software by opening the "Demo Sample" from file menu, and you can evaluate the program performance of different parts of the software.
In the case of satisfaction with application performance and want to activate all functions and turn it into a full version, you must register your software. you can register your copy of software be 'Software Registration' link in the site top menu.
To download the installation software file, please click on the following link below.

	Software Compatibility:           XP / 7 / 8 / 10       32 and 64 Bit
Free Download FOUNDA MATE ver 2.1.150 Evaluation by below link  Download FOUNDA MATE Setup File (9.5MB)



---
